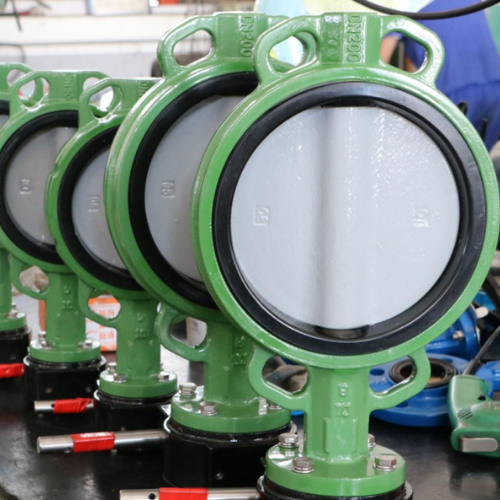

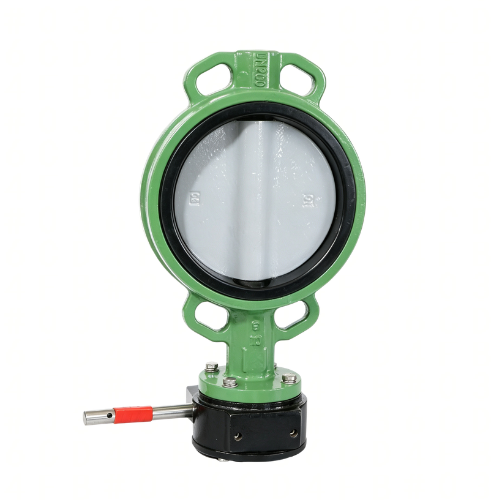

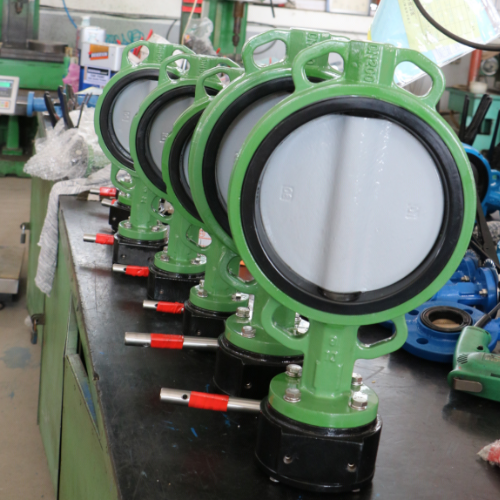

Smooth, corrosion-resistant, and abrasion-resistant disc surface for water and industrial service.
Corrosion-resistant body protection for longer service life in water and general industrial environments.
Configurable with certified wetted materials and coatings for drinking water applications.
Lightweight, short-face-to-face body for space-saving installation between standard pipe flanges.
| Item |
Specification |
|---|---|
| Product | Wafer Butterfly Valve |
| Body Style | Wafer |
| Disc Coating | Nylon 11 |
| Body Coating | Epoxy |
| Certification | NSF/ANSI 61 available according to selected configuration |
| Pressure Rating | To be confirmed according to project requirements |
| Nominal Size | To be confirmed according to project requirements |
| Face-to-Face | Available upon request |
| Flange Drilling | Available upon request |
| Temperature Range | Dependent on selected seat material and coating system |
| Standards | To be confirmed according to project requirements |
| Leakage Class | To be confirmed according to project requirements |
| Mounting | ISO 5211 to be confirmed according to project requirements |
| Component | Available Material Options |
|---|---|
| Body | DI, WCB, CF8, CF8M, Al-Bronze |
| Disc | Plated Ductile Iron, CF8, CF8M, Duplex, Bronze, Aluminum Bronze, Nylon Coated, PTFE Lined |
| Shaft | SS420, SS316, 17-4PH, Duplex |
| Seat | EPDM, NBR, High Temperature EPDM, FKM, PTFE |
| Actuator | Typical Use |
|---|---|
| Lever Handle | Manual operation for smaller sizes and lower torque applications |
| Gear Operator | Manual operation for larger sizes or higher torque requirements |
| Electric Actuator | Remote or automated on-off and modulating service |
| Pneumatic Actuator | Fast on-off service and automated process control |
| Disc Protection | Typical Characteristics |
|---|---|
| Nylon 11 Coated Disc | Good corrosion, abrasion, impact, and chemical resistance with low friction and a smooth surface |
| Epoxy Coated Disc | Cost-effective corrosion protection for many water and wastewater applications |
| Nickel Plated Disc | Hard metallic surface with good wear and corrosion resistance in selected services |
| Stainless Steel Disc | Solid corrosion-resistant material without a coating layer |
| PTFE Lined Disc | Broad chemical resistance for aggressive acids, alkalis, and solvents |
Standard testing items may include:
Exact test methods, pressures, coating checks, and acceptance criteria should be confirmed according to the project specification.
Laux Valve provides OEM and customized butterfly valve solutions for distributors, EPC contractors, and industrial equipment manufacturers. Possible customization options include:
It is a butterfly valve with the disc protected by a Nylon 11 coating. Nylon 11, also known as polyamide 11, provides a smooth, corrosion-resistant, and abrasion-resistant surface on the ductile iron or metal disc.
NSF/ANSI 61 is a drinking water system component standard. The selected wetted materials and coatings are certified or available with certification documents to support use in potable water service.
Yes. The valve body is available with a corrosion-resistant epoxy coating. Coating system, thickness, and test requirements should be confirmed according to the project specification.
Nylon 11 offers good chemical resistance, low friction, smooth operation, and resistance to wear and impact. Compared with epoxy, it can be more resistant to abrasion and mechanical damage in some services. The correct coating depends on media, temperature, and operating conditions.
Body options include DI, WCB, CF8, CF8M, and aluminum bronze. Disc options include plated ductile iron, CF8, CF8M, duplex, bronze, aluminum bronze, nylon coated, and PTFE lined. Shaft options include SS420, SS316, 17-4PH, and duplex.
Seat options include EPDM, NBR, high temperature EPDM, FKM, and PTFE. Selection depends on the medium, temperature, pressure, and chemical compatibility.
Yes. The valve can be configured with NSF/ANSI 61 certified wetted materials and coatings for potable water systems. Certification documents should be requested and matched to the selected size and materials.
Yes. Actuation options include lever handle, gear operator, electric actuator, and pneumatic actuator. ISO 5211 mounting can be confirmed according to project requirements.
Typical applications include drinking water treatment and distribution, water supply, wastewater, HVAC, industrial water, and large diameter pipeline systems.
Standard inspection may include shell pressure test, seat leakage test, dimensional inspection, visual inspection, coating inspection, and operating test. Test requirements should be confirmed according to the project specification.
From raw material inspection to final delivery, every butterfly valve undergoes a comprehensive quality inspection to ensure reliable performance and compliance with international standards.
